Iscar

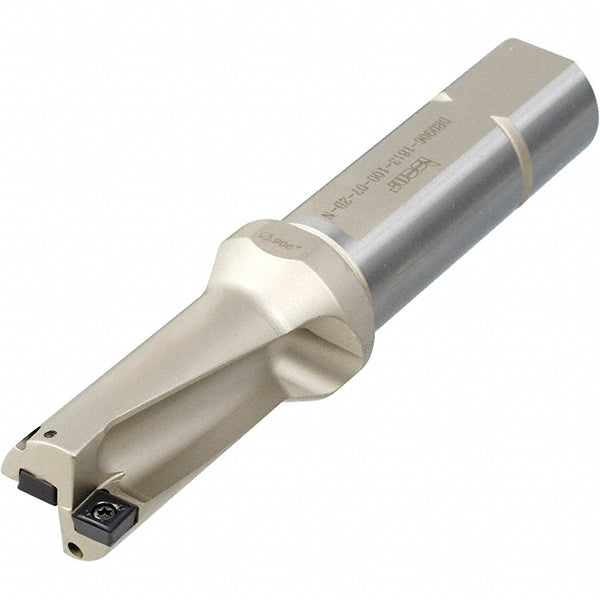

Indexable Drilling - Iscar 3201393
MFR# 3201393Series DR-TWIST
$591.22List $610.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201393 indexable drilling. Series DR-TWIST.
Specifications
Body length2.5500
Body side coolant hole thread size in1/16-27
Collar diameter1.2600
Compatible drill styleDR
Compatible insert size code07
Compatible insert styleSOMX
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio2xD
Drill diameter in27/32
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF
Maximum drill depth1.6900
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in27/32
Modular connection size1 in
Neck diameter in1.2600
Number of drill inserts2
Shank diameter in1
Shank end coolant hole thread size in3/8-18
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
