Iscar

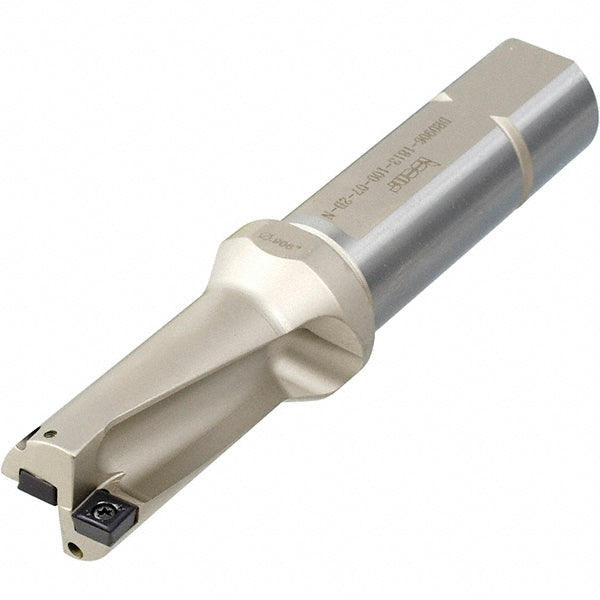

Indexable Drilling - Iscar 3201395
MFR# 3201395Series DR-TWIST
$591.22List $610.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201395 indexable drilling. Series DR-TWIST.
Specifications
Body length2.6800
Collar diameter1.2600
Compatible drill styleDR
Compatible insert size code07
Compatible insert styleSOMX
Coolant hole thread size3/8-18 NPT
Coolant throughYes
Drill depth by diameter ratio2xD
Drill diameter in29/32
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD
Maximum drill depth1.8100
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in29/32
Modular connection size1 in
Neck diameter in1.2600
Shank diameter in1
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
