Iscar

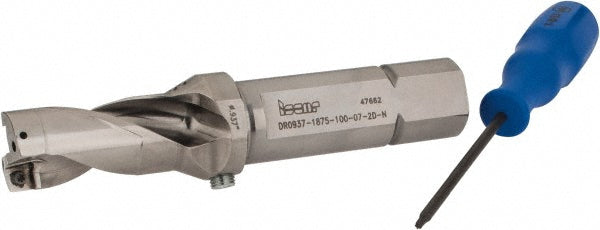

Indexable Drilling - Iscar 3201396
MFR# 3201396Series DR-2D-N
$607.49List $627.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201396 indexable drilling. Series DR-2D-N.
Specifications
Body length2.7400
Collar diameter1.2600
Compatible drill styleDR
Compatible insert size code070305
Compatible insert styleSOMX
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size"3/8-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length1.8800
Insert compatibilitySOMX070305
Insert lock screwSR 14-560
Insert size0.3031
Maximum drill depth1.8800
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in15/16
Modular connection size1 in
Neck diameter in1.2600
Number of drill inserts2
Overall length5.7400
Shank diameter in1
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
