Iscar

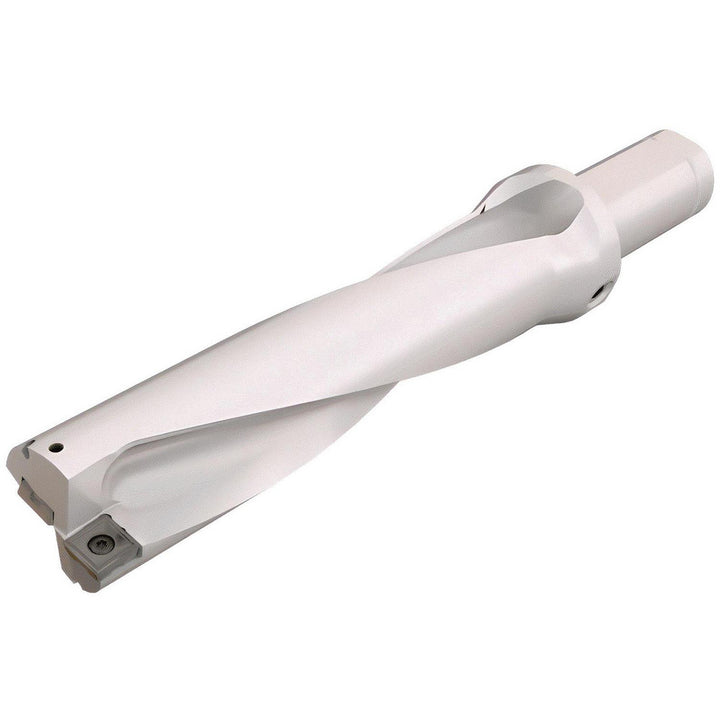

Indexable Drilling - Iscar 3201494
MFR# 3201494Series DR-TWIST
$723.30List $746.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201494 indexable drilling. Series DR-TWIST.
Specifications
Body length5.3000
Collar diameter1.6540
Compatible drill styleDR
Coolant hole thread size1/2-14 NPT
Coolant throughYes
Drill depth by diameter ratio4xD
Insert compatibilitySOMT-DT; SOMT-GF; SOMT-HD
Maximum drill depth in4
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1
Modular connection size1-1/4 in
Neck diameter in1.6540
Shank diameter in1-1/4
Shank length3.0000
Shank typeWhistle Notch
Tool applicationHolemaking
Tool performanceGeneral Purpose
