Iscar

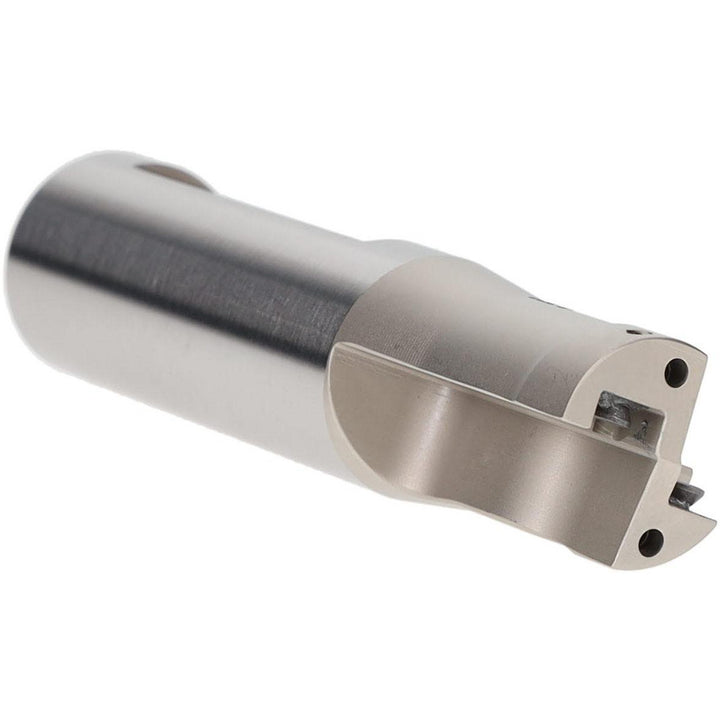

Indexable Drilling - Iscar 3201519
MFR# 3201519Series DRDRILLS
$342.18List $347.20
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201519 indexable drilling. Series DRDRILLS.
Specifications
Body length1.1800
Compatible drill styleDRM
Coolant throughYes
Drill depth by diameter ratio1xD
Drill diameter in23/32
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF
Maximum drill depth0.7200
Maximum drill depth range0.0000 to 1.0000
Maximum drill diameter in23/32
Modular connection size3/4 in
Number of drill inserts2
Shank diameter in3/4
Shank length2.0300
Shank typeStraight-Cylindrical
Tool applicationPlunging; Shouldering; Slotting; Spot Facing
Tool performanceGeneral Purpose
