Iscar

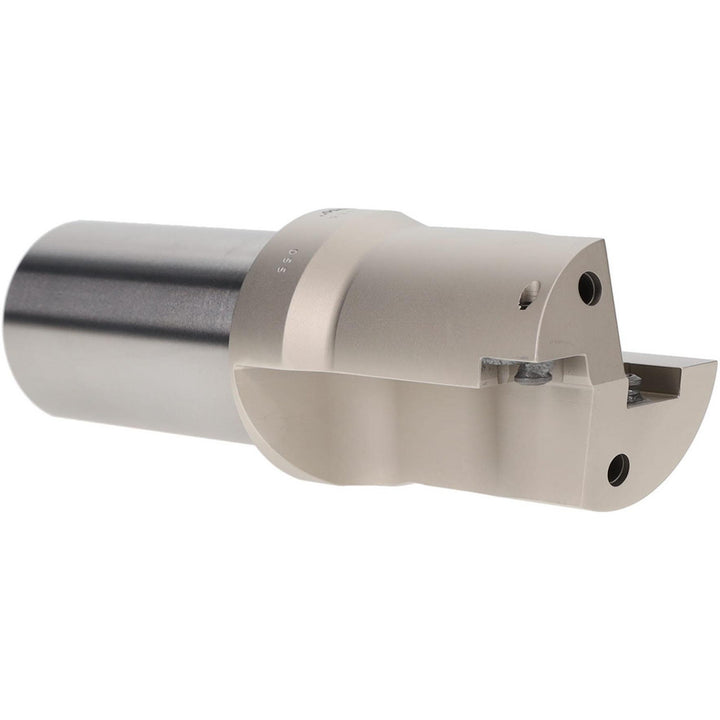

Indexable Drilling - Iscar 3201530
MFR# 3201530Series DRDRILLS
$512.00List $528.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201530 indexable drilling. Series DRDRILLS.
Specifications
Body length2.6800
Compatible drill styleDRM
Coolant throughYes
Drill depth by diameter ratio1xD
Drill diameter in1-3/4
Insert compatibilitySOMT-DT; SOMT-GF
Maximum drill depth in1-3/4
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in1-3/4
Modular connection size1-1/2 in
Number of drill inserts2
Shank diameter in1-1/2
Shank length2.6900
Shank typeStraight-Cylindrical
Tool applicationPlunging; Shouldering; Slotting; Spot Facing
Tool performanceGeneral Purpose
