Iscar

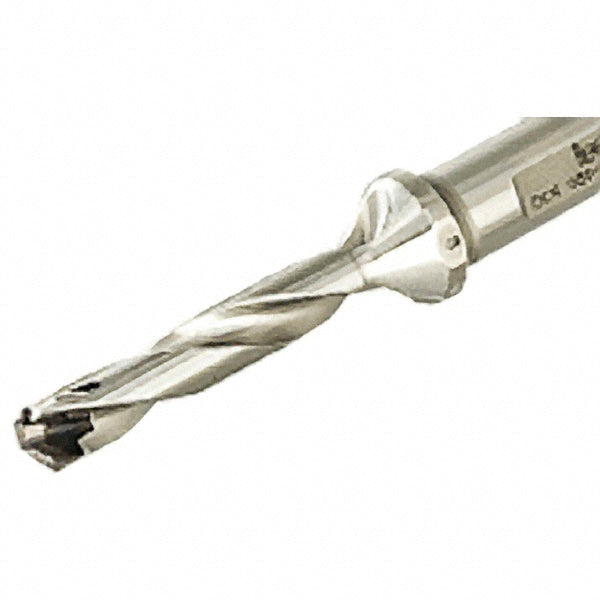

Indexable Drilling - Iscar 3201678
MFR# 3201678Series SumoCham
$518.68List $535.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201678 indexable drilling. Series SumoCham.
Specifications
Body length131.60
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size20
Maximum drill depth (mm)100.00
Maximum drill depth range (mm)100.00 to 125.00
Maximum drill diameter (mm)20.90
Minimum drill diameter (mm)20.00
Overall length (mm)187.60mm
Shank diameter (mm)25.00mm
Shank length (mm)56.00mm
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
