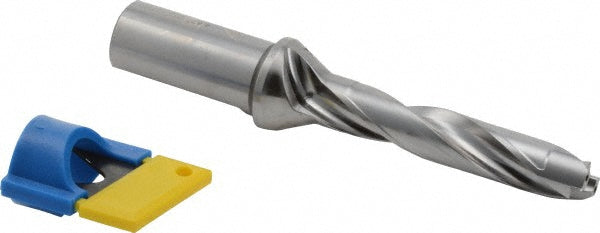

Indexable Drilling - Iscar 3201737
MFR# 3201737Series SumoCham
$472.78List $488.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201737 indexable drilling. Series SumoCham.
Specifications
Body length4.6700in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth3.5400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7440
Minimum drill diameter0.7090
Overall length6.8700in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
