Iscar

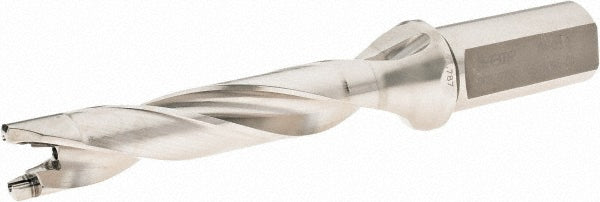

Indexable Drilling - Iscar 3201739
MFR# 3201739Series SumoCham
$527.86List $535.60
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201739 indexable drilling. Series SumoCham.
Specifications
Body length5.1800in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth3.9400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.8230
Minimum drill diameter0.7870
Overall length7.3800in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
