Iscar

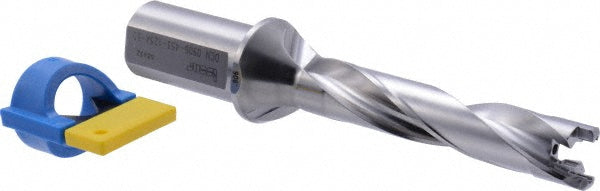

Indexable Drilling - Iscar 3201742
MFR# 3201742Series SumoCham
$697.73List $739.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201742 indexable drilling. Series SumoCham.
Specifications
Body length5.9600in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth4.5300
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.9410
Minimum drill diameter0.9060
Overall length8.3200in
Shank diameter in1-1/4in
Shank length2.3600in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
