Iscar

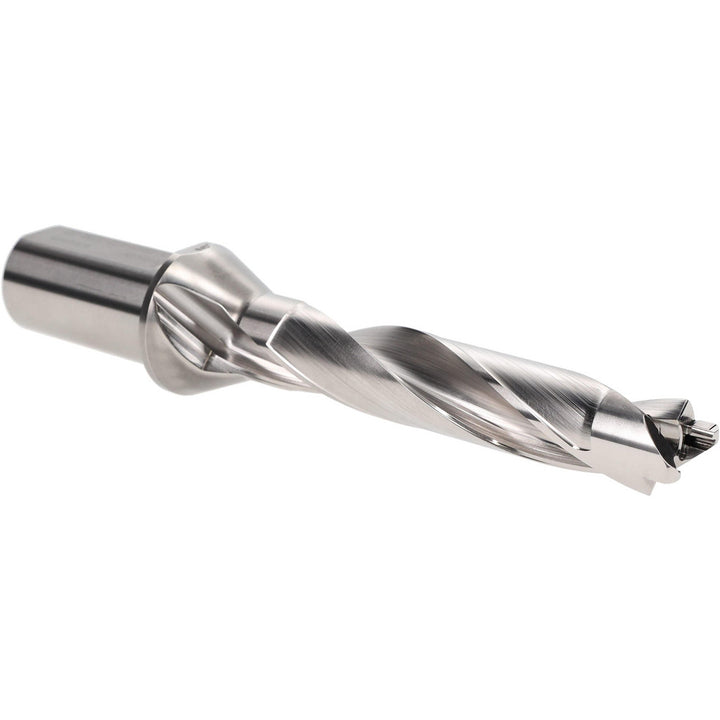

Indexable Drilling - Iscar 3201743
MFR# 3201743Series SumoCham
$685.24List $707.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201743 indexable drilling. Series SumoCham.
Specifications
Body length6.22
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size24
Maximum drill depth4.7200
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.9800
Minimum drill diameter0.9450
Overall length8.58
Shank diameter in1-1/4
Shank length2.3600
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
