Iscar

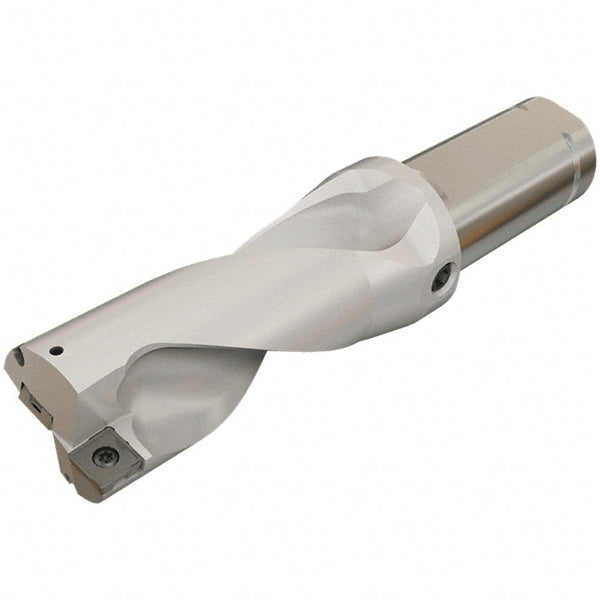

Indexable Drilling - Iscar 3201794
MFR# 3201794Series DR-TWIST
$607.49List $627.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201794 indexable drilling. Series DR-TWIST.
Specifications
Body length3.2700
Body side coolant hole thread size in1/16-27
Collar diameter1.6540
Compatible drill styleDR
Compatible insert size code09
Compatible insert styleSOMT
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio2xD
Drill diameter0.9843
Insert compatibilitySOMT-DT; SOMT-GF
Maximum drill depth1.9700
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter1.1420
Modular connection size1-1/4 in
Neck diameter in1.6540
Number of drill inserts2
Shank diameter in1-1/4
Shank end coolant hole thread size in1/2-14
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
