Iscar

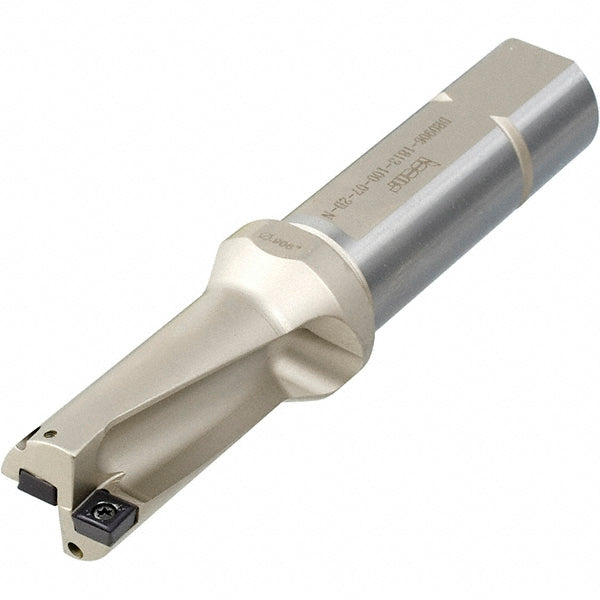

Indexable Drilling - Iscar 3201798
MFR# 3201798Series DR-2D-N
$666.36List $688.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201798 indexable drilling. Series DR-2D-N.
Specifications
Body length3.5500
Collar diameter1.6540
Compatible drill styleDR
Compatible insert size code09T306
Compatible insert styleSOMT
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size"1/2-14 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length2.2500
Insert compatibilitySOMT09T306
Insert lock screwSR 34-506 M3X0.5
Insert size0.3540
Maximum drill depth in2-1/4
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in1-1/8
Modular connection size1-1/4 in
Neck diameter in1.6540
Number of drill inserts2
Overall length6.5500
Shank diameter in1-1/4
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
