Iscar

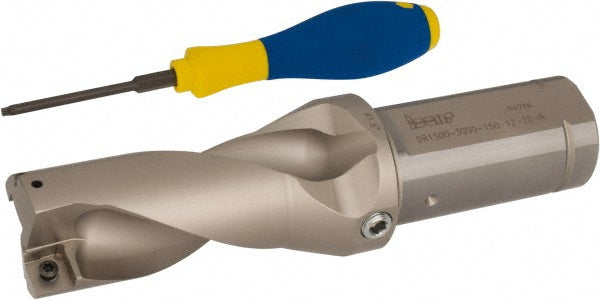

Indexable Drilling - Iscar 3201806
MFR# 3201806Series DR-TWIST
$811.60List $823.50
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201806 indexable drilling. Series DR-TWIST.
Specifications
Body length4.4600
Body side coolant hole thread size in1/16-27
Compatible drill styleDR
Compatible insert size code12
Compatible insert styleSOMT
Coolant hole thread size1/16-27
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Drill diameter in1-1/2
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1-1/2
Modular connection size1-1/2 in
Neck diameter in1.9700
Number of drill inserts2
Overall length7.4600
Shank diameter in1-1/2
Shank end coolant hole thread size in3/4
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
