Iscar

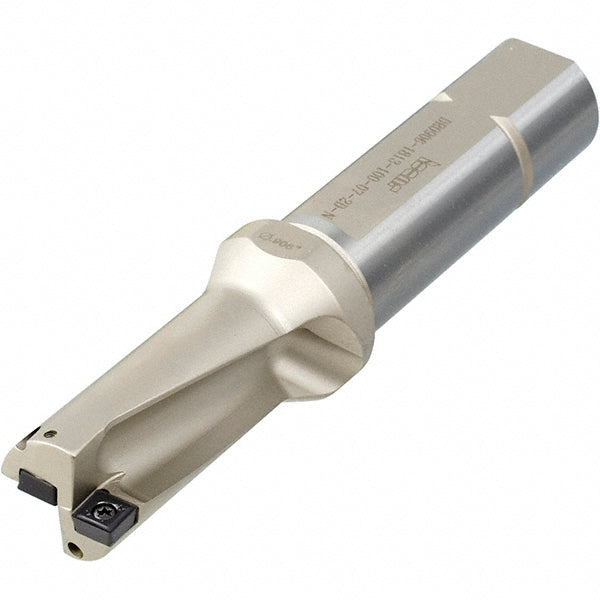

Indexable Drilling - Iscar 3201811
MFR# 3201811Series DR-2D-N
$884.84List $913.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201811 indexable drilling. Series DR-2D-N.
Specifications
Body length5.1300
Body side coolant hole thread size in1/16-27
Collar diameter2.3620
Compatible drill styleDR
Compatible insert size code160512
Compatible insert styleSOMT
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size"1/16-27 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length3.6200
Insert compatibilitySOMT160512
Insert lock screwSR 76-961
Insert size0.6300
Maximum drill depth3.6200
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1-13/16
Modular connection size1-1/2 in
Neck diameter in2.3620
Number of drill inserts2
Overall length8.1300
Shank diameter in1-1/2
Shank length3.0000
Shank typeWeldon Flat
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
