Iscar

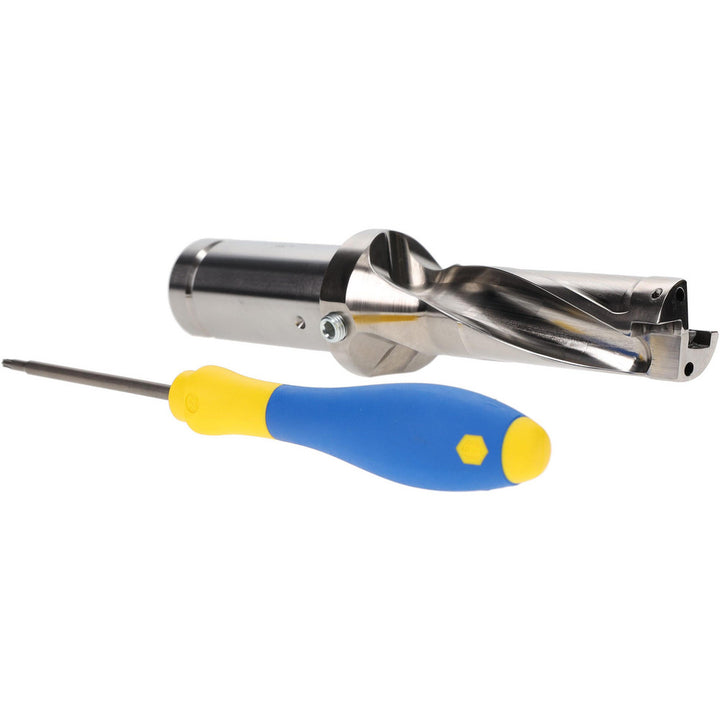

Indexable Drilling - Iscar 3201840
MFR# 3201840Series DR-TWIST
$626.75List $647.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201840 indexable drilling. Series DR-TWIST.
Specifications
Body length4.3000
Body side coolant hole thread size in1/16-27
Compatible drill styleDR
Compatible insert size code09T306-DT
Compatible insert styleSOMT
Coolant hole thread size1/16-27
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Drill diameter in1
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1
Modular connection size1-1/4 in
Neck diameter in1.6540
Number of drill inserts2
Overall length7.3000
Shank diameter in1-1/4
Shank end coolant hole thread size in1/2-14
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
