Iscar

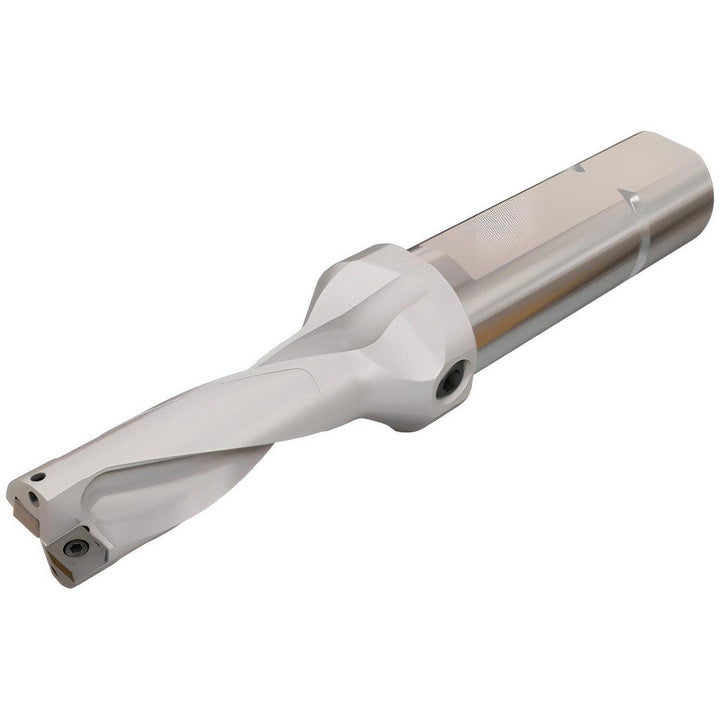

Indexable Drilling - Iscar 3201843
MFR# 3201843Series DR-TWIST
$702.97List $725.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201843 indexable drilling. Series DR-TWIST.
Specifications
Body length4.6700
Collar diameter1.6540
Compatible drill styleDR
Compatible insert size code09T306-DT
Compatible insert styleSOMT
Coolant hole thread size1/2-14 NPT
Coolant throughYes
Drill depth by diameter ratio3xD
Insert compatibilitySOMT-DT; SOMT-GF; SOMT-HD
Maximum drill depth3.3800
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1-1/8
Modular connection size1-1/4 in
Neck diameter in1.6540
Shank diameter in1-1/4
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
