Iscar

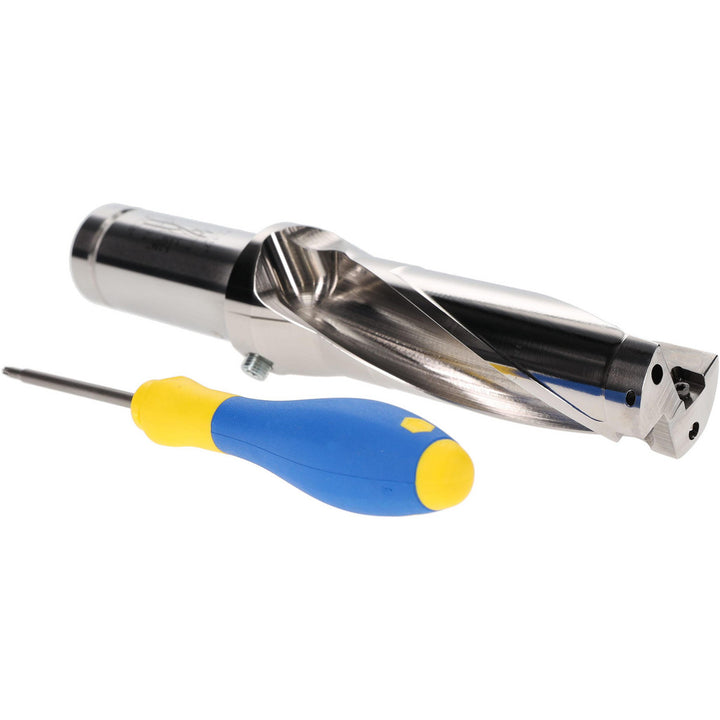

Indexable Drilling - Iscar 3201848
MFR# 3201848Series DR-TWIST
$774.34List $785.70
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201848 indexable drilling. Series DR-TWIST.
Specifications
Body length5.2400
Body side coolant hole thread size in1/16-27
Collar diameter1.6540
Compatible drill styleDR
Compatible insert size code09T306-DT
Compatible insert styleSOMT
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio3xD
Drill diameter in1-5/16
Insert compatibilitySOMT-DT; SOMT-GF
Maximum drill depth3.9400
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1-5/16
Modular connection size1-1/4 in
Neck diameter in1.6540
Number of drill inserts2
Shank diameter in1-1/4
Shank end coolant hole thread size in1/2-14
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
