Iscar

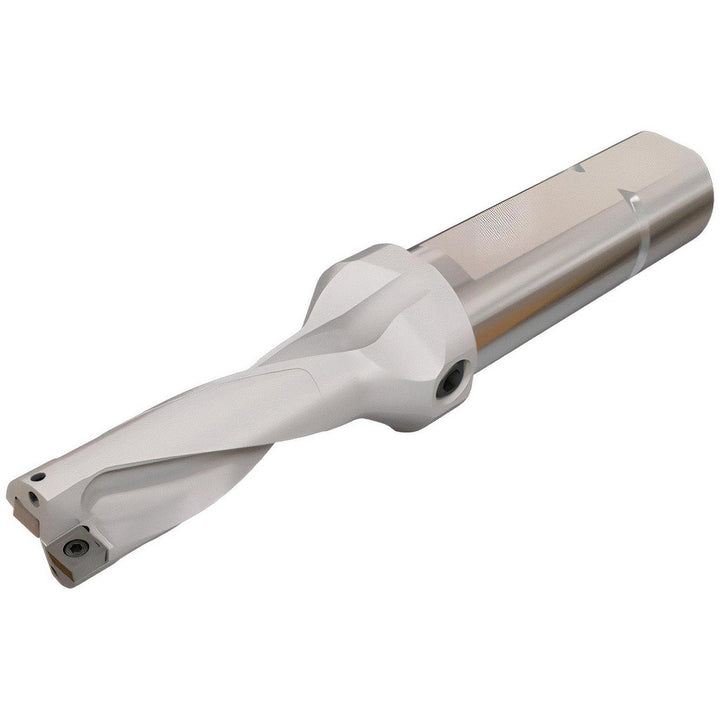

Indexable Drilling - Iscar 3201849
MFR# 3201849Series DR-3D-N
$806.59List $832.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201849 indexable drilling. Series DR-3D-N.
Specifications
Body length5.4200
Collar diameter1.9690
Compatible drill styleDR
Compatible insert size code120408
Compatible insert styleSOMT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length4.1300
Insert compatibilitySOMT120408
Insert lock screwSR 14-544/S
Insert size0.5000
Maximum drill depth4.1300
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-3/8
Modular connection size1-1/2 in
Neck diameter in1.9690
Number of drill inserts2
Overall length8.4200
Shank diameter in1-1/2
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
