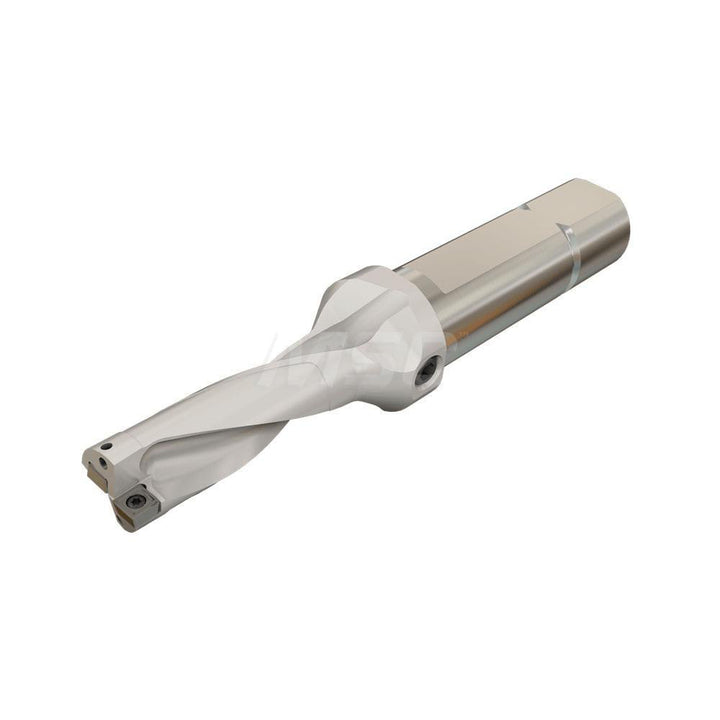

Indexable Drilling - Iscar 3201851
MFR# 3201851Series DR-TWIST
$839.13List $866.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201851 indexable drilling. Series DR-TWIST.
Specifications
Body length5.9600
Body side coolant hole thread size in1/16-27
Collar diameter1.9690
Compatible drill styleDR
Compatible insert size code120408-DT
Compatible insert styleSOMT
Coolant hole thread size1/16-27 NPT
Coolant throughYes
Drill depth by diameter ratio3xD
Insert compatibilitySOMT-DT; SOMT-GF
Maximum drill depth in4-1/2
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-1/2
Modular connection size1-1/2 in
Neck diameter in1.9690
Number of drill inserts2
Shank diameter in1-1/2
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
