Iscar

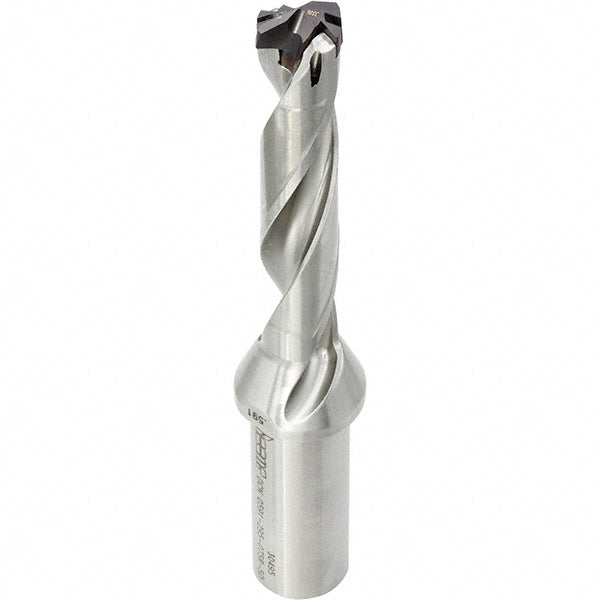

Indexable Drilling - Iscar 3202300
MFR# 3202300Series SumoCham
$337.10List $348.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202300 indexable drilling. Series SumoCham.
Specifications
Body length73.30
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size16
Maximum drill depth (mm)48.00
Maximum drill depth range (mm)40.00 to 60.00
Maximum drill diameter (mm)16.90
Minimum drill diameter (mm)16.00
Overall length (mm)123.3
Shank diameter (mm)20.00
Shank length (mm)50.00
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
