Iscar

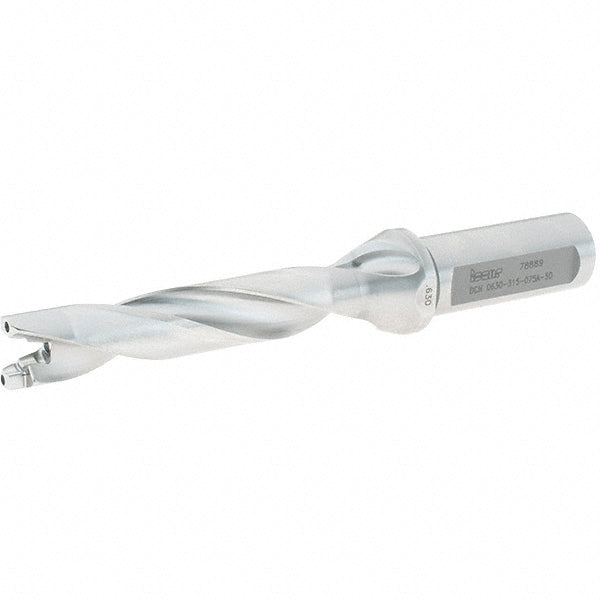

Indexable Drilling - Iscar 3202301
MFR# 3202301Series SumoCham
$395.01List $407.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202301 indexable drilling. Series SumoCham.
Specifications
Body length4.1500in
Compatible insert styleFCP; HCP-IQ; ICG; ICK; ICK-2M; ICM; ICN; ICP; ICP-2M; QCP-2M
Coolant throughYes
Maximum drill depth3.2700
Maximum drill diameter0.6650
Minimum drill diameter0.6300
Overall length6.1200in
Shank diameter0.7500
Shank length1.9700in
Shank typeFlatted
StandardsISO 13399
Toolholder styleDCN A-5D
Tool applicationHolemaking
