Iscar

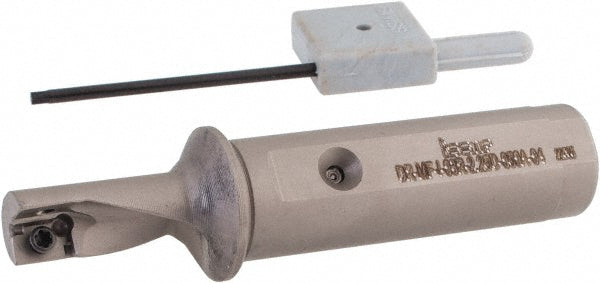

Indexable Drilling - Iscar 3202368
MFR# 3202368Series Multifunction Tools
$332.16List $343.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202368 indexable drilling. Series Multifunction Tools.
Specifications
Body length0.8900
Compatible drill styleDR-MF
Coolant hole thread sizeG 1/16
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.25xD
Drill diameter0.3150
Insert compatibilityXCMT 040104
Maximum drill depth0.7100
Maximum drill depth range0.0000 to 1.0000
Maximum drill diameter0.3150
Modular connection size1/2 in
Overall length2.5400
Shank diameter in1/2
Shank length1.6500
Shank typeStraight-Cylindrical
Tool applicationBoring; Facing; Internal Grooving
Tool performanceGeneral Purpose
