Iscar

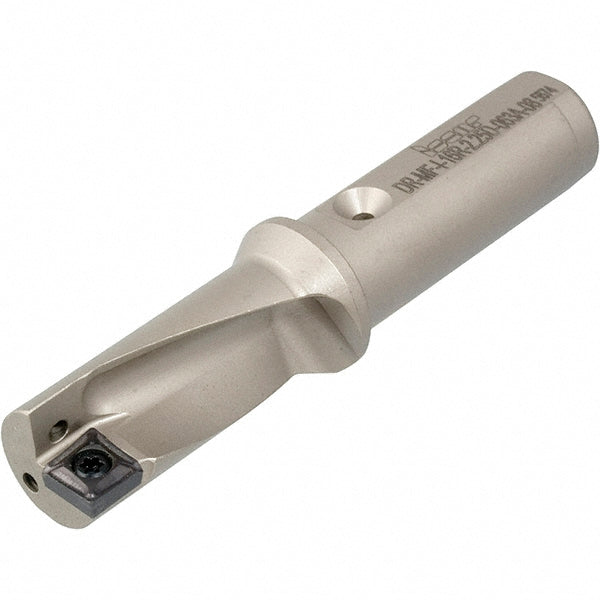

Indexable Drilling - Iscar 3202407
MFR# 3202407Series SumoCham
$308.24List $318.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202407 indexable drilling. Series SumoCham.
Specifications
Body length60.80
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size9
Maximum drill depth (mm)45.00
Maximum drill depth range (mm)40.00 to 60.00
Maximum drill diameter (mm)9.40
Minimum drill diameter (mm)9.00
Overall length (mm)105.80mm
Shank diameter (mm)12.00mm
Shank length (mm)45.00mm
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
