Iscar

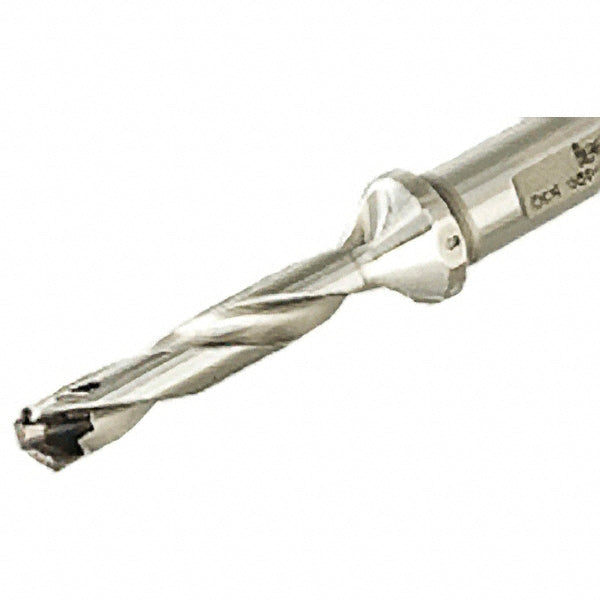

Indexable Drilling - Iscar 3202421
MFR# 3202421Series SumoCham
$286.65List $296.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202421 indexable drilling. Series SumoCham.
Specifications
Body length51.10
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size11
Maximum drill depth (mm)35.00
Maximum drill depth range (mm)0.00 to 40.00
Maximum drill diameter (mm)11.90
Minimum drill diameter (mm)11.50
Overall length (mm)99.1
Shank diameter (mm)16.00
Shank length (mm)48.00
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
