Iscar

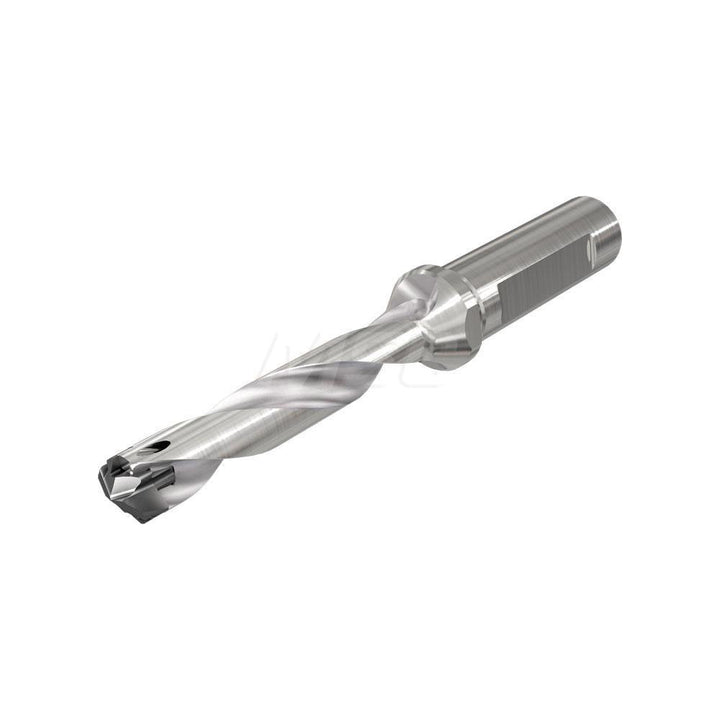

Indexable Drilling - Iscar 3202428
MFR# 3202428Series SumoCham
$370.03List $382.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202428 indexable drilling. Series SumoCham.
Specifications
Body length3.5539in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth2.7580
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5674
Minimum drill diameter0.5516
Overall length5.4451in
Shank diameter0.6304
Shank length1.8912in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
