Iscar

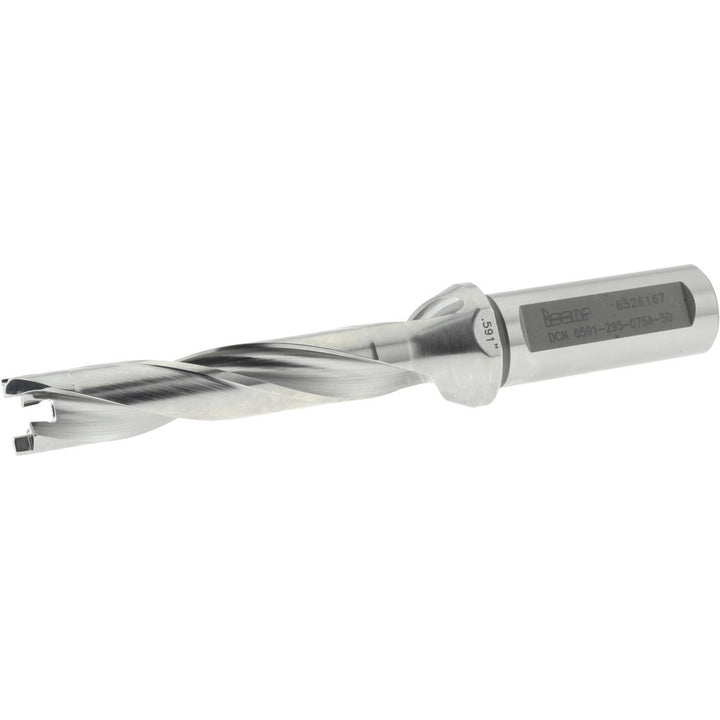

Indexable Drilling - Iscar 3202451
MFR# 3202451Series SumoCham
$395.01List $407.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202451 indexable drilling. Series SumoCham.
Specifications
Body length3.89
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth2.9500
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.6260
Minimum drill diameter0.5910
Overall length5.86
Shank diameter in3/4
Shank length1.9700
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
