Iscar

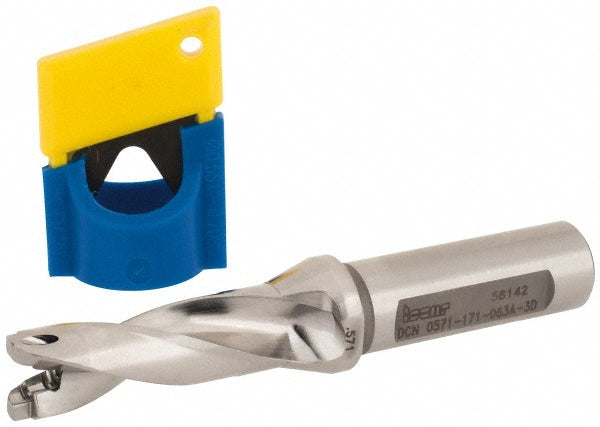

Indexable Drilling - Iscar 3202459
MFR# 3202459Series SumoCham
$319.19List $329.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202459 indexable drilling. Series SumoCham.
Specifications
Body length2.5100in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size14
Maximum drill depth1.7100
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5870
Minimum drill diameter0.5710
Overall length4.4000in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
