Iscar

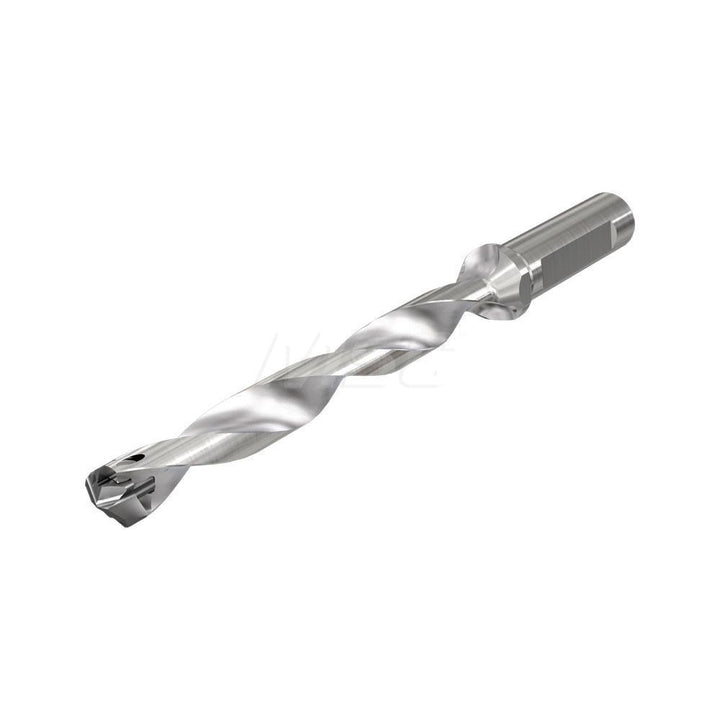

Indexable Drilling - Iscar 3202468
MFR# 3202468Series SumoCham
$420.23List $426.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202468 indexable drilling. Series SumoCham.
Specifications
Body length104.60
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size11
Maximum drill depth (mm)88.00
Maximum drill depth range (mm)80.00 to 100.00
Maximum drill diameter (mm)11.40
Minimum drill diameter (mm)11.00
Overall length (mm)152.60mm
Shank diameter (mm)16.00mm
Shank length (mm)48.00mm
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
