Iscar

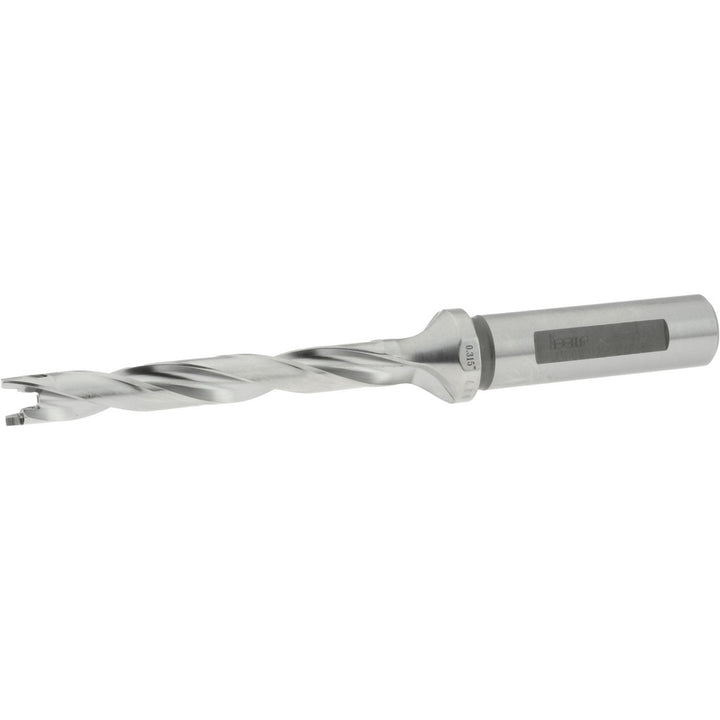

Indexable Drilling - Iscar 3202476
MFR# 3202476Series SumoCham
$367.02List $379.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202476 indexable drilling. Series SumoCham.
Specifications
Body length3.13
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Maximum drill depth2.5200
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.3500
Minimum drill diameter0.3150
Overall length4.9
Shank diameter in1/2
Shank length1.7700
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
