Iscar
Indexable Drilling - Iscar 3202478
MFR# 3202478Series SumoCham
$401.01List $414.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

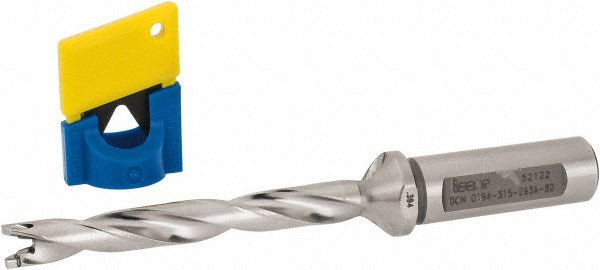

The Iscar 3202478 indexable drilling. Series SumoCham.
Specifications
Body length3.7900in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Maximum drill depth3.1500
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.4290
Minimum drill diameter0.3940
Overall length5.6800in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
