Iscar

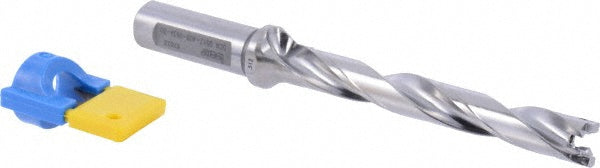

Indexable Drilling - Iscar 3202481
MFR# 3202481Series SumoCham
$453.58List $481.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202481 indexable drilling. Series SumoCham.
Specifications
Body length4.7900in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size13
Maximum drill depth4.0900
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.5470
Minimum drill diameter0.5120
Overall length6.6800in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
