Iscar

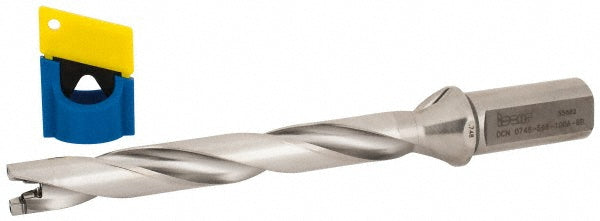

Indexable Drilling - Iscar 3202487
MFR# 3202487Series SumoCham
$623.47List $643.80
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202487 indexable drilling. Series SumoCham.
Specifications
Body length7.1700in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size19
Maximum drill depth5.9800
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.7830
Minimum drill diameter0.7480
Overall length9.3700in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
