Iscar

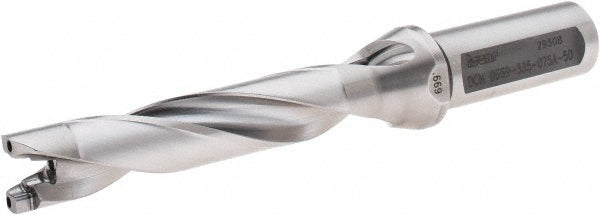

Indexable Drilling - Iscar 3202489
MFR# 3202489Series SumoCham
$472.78List $488.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202489 indexable drilling. Series SumoCham.
Specifications
Body length4.4100in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth3.3500
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.7050
Minimum drill diameter0.6690
Overall length6.3800in
Shank diameter in3/4in
Shank length1.9700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
