Iscar

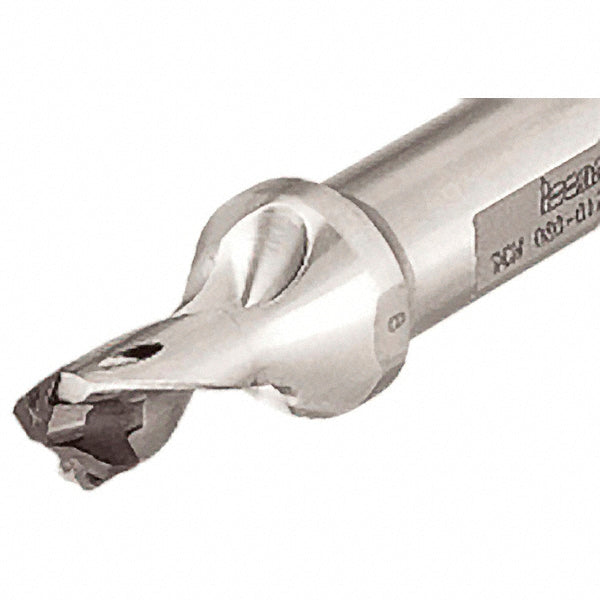

Indexable Drilling - Iscar 3202493
MFR# 3202493Series SumoCham
$263.31List $271.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202493 indexable drilling. Series SumoCham.
Specifications
Body length33.10
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size11
Maximum drill depth (mm)17.00
Maximum drill depth range (mm)0.00 to 40.00
Maximum drill diameter (mm)11.40
Minimum drill diameter (mm)11.00
Overall length (mm)81.10mm
Shank diameter (mm)16.00mm
Shank length (mm)48.00mm
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
