Iscar

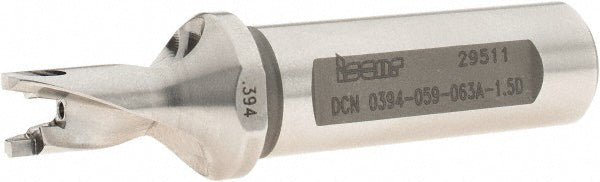

Indexable Drilling - Iscar 3202504
MFR# 3202504Series SumoCham
$256.34List $264.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202504 indexable drilling. Series SumoCham.
Specifications
Body length1.2300in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size10
Maximum drill depth0.5900
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4090
Minimum drill diameter0.3940
Overall length3.1200in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
