Iscar

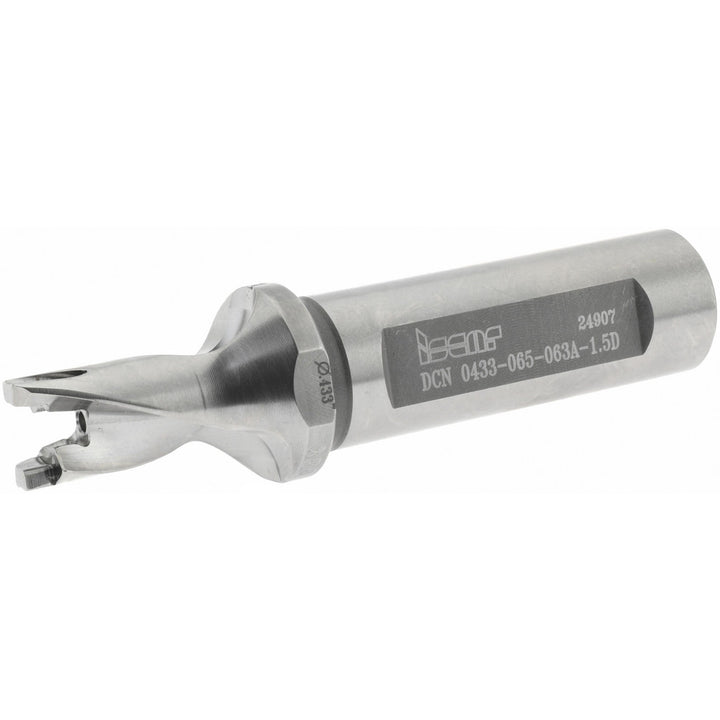

Indexable Drilling - Iscar 3202505
MFR# 3202505Series SumoCham
$260.18List $264.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202505 indexable drilling. Series SumoCham.
Specifications
Body length1.3
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size11
Maximum drill depth0.6500
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4490
Minimum drill diameter0.4330
Overall length3.19
Shank diameter in5/8
Shank length1.8900
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
