Iscar

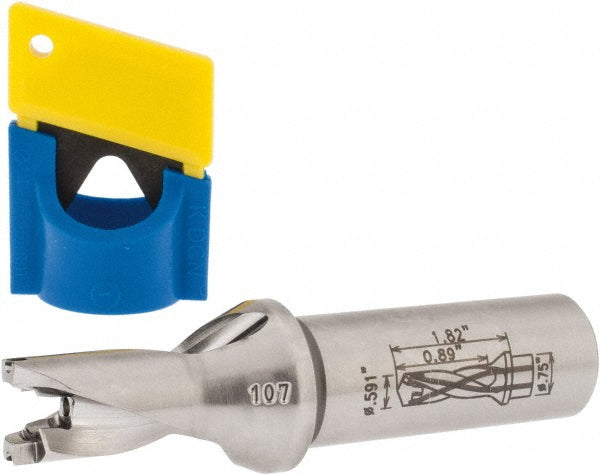

Indexable Drilling - Iscar 3202509
MFR# 3202509Series SumoCham
$301.48List $305.90
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202509 indexable drilling. Series SumoCham.
Specifications
Body length1.8200in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size15
Maximum drill depth0.8900
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.6260
Minimum drill diameter0.5910
Overall length3.7900in
Shank diameter in3/4in
Shank length1.9700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
