Iscar

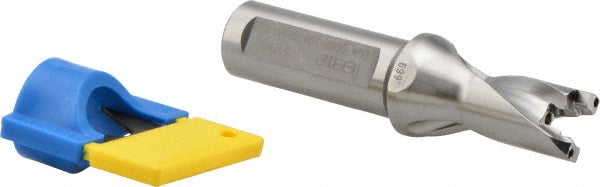

Indexable Drilling - Iscar 3202511
MFR# 3202511Series SumoCham
$351.15List $362.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202511 indexable drilling. Series SumoCham.
Specifications
Body length2.0600in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size17
Maximum drill depth1.0000
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.7050
Minimum drill diameter0.6690
Overall length4.0300in
Shank diameter in3/4in
Shank length1.9700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
