Iscar

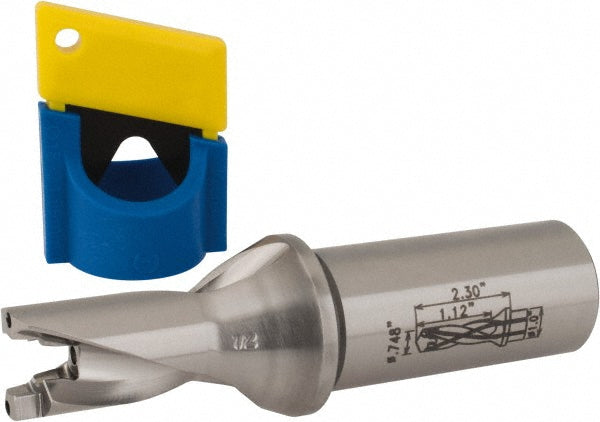

Indexable Drilling - Iscar 3202513
MFR# 3202513Series SumoCham
$386.01List $398.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202513 indexable drilling. Series SumoCham.
Specifications
Body length2.3000in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size19
Maximum drill depth1.1200
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.7830
Minimum drill diameter0.7480
Overall length4.5000in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
