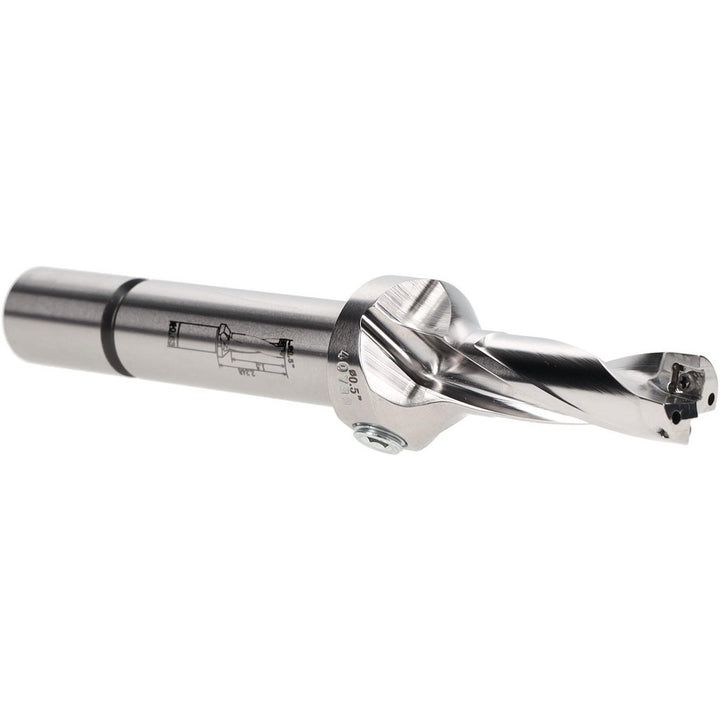

Indexable Drilling - Iscar 3202559
MFR# 3202559Series DR-TWIST
$518.10List $535.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202559 indexable drilling. Series DR-TWIST.
Specifications
Body length2.2500
Body side coolant hole thread size in1/16-27
Collar diameter0.9840
Compatible drill styleDR
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio3xD
Drill diameter in1/2
Insert compatibilityAOMT-DT
Maximum drill depth in1-1/2
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in1/2
Modular connection size5/8 in
Neck diameter in0.9840
Number of drill inserts2
Shank diameter in5/8
Shank end coolant hole thread size in1/8-27
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
