Iscar

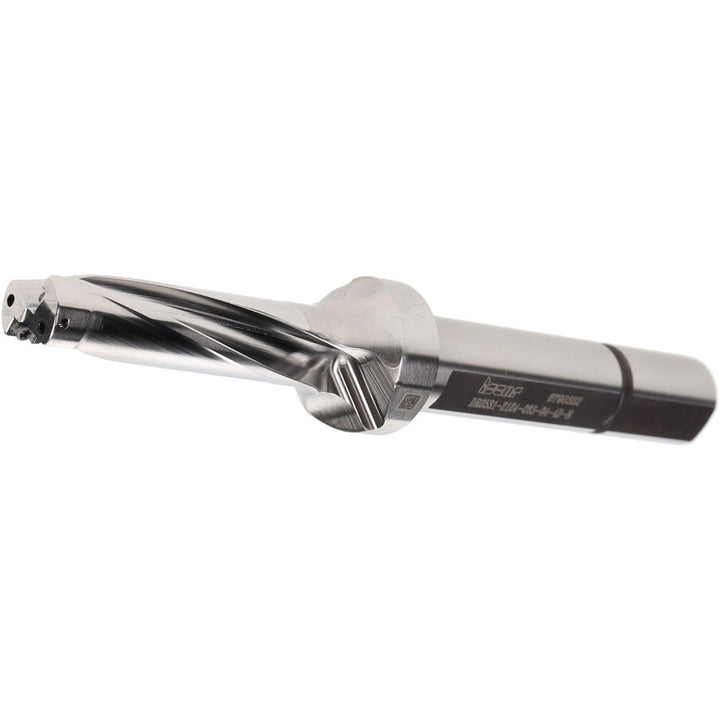

Indexable Drilling - Iscar 3202565
MFR# 3202565Series DR-TWIST
$637.85List $647.20
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202565 indexable drilling. Series DR-TWIST.
Specifications
Body length2.8700
Body side coolant hole thread size in1/16-27
Collar diameter0.9840
Compatible drill styleDR
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio4xD
Drill diameter in17/32
Insert compatibilityAOMT-DT
Maximum drill depth2.1200
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in17/32
Modular connection size5/8 in
Neck diameter in0.9840
Number of drill inserts2
Shank diameter in5/8
Shank end coolant hole thread size in1/8-27
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
