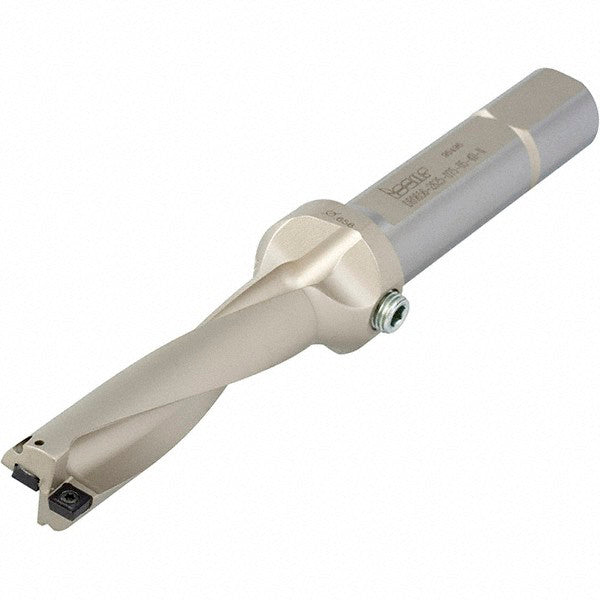

Indexable Drilling - Iscar 3202574
MFR# 3202574Series DR-TWIST
$692.64List $702.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202574 indexable drilling. Series DR-TWIST.
Specifications
Body length3.6600
Body side coolant hole thread size in1/16-27
Collar diameter1.0900
Compatible drill styleDR
Compatible insert size code050204-DT
Compatible insert styleSOMX
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio5xD
Drill diameter in9/16
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF
Maximum drill depth2.8200
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in9/16
Modular connection size3/4 in
Neck diameter in1.0900
Number of drill inserts2
Shank diameter in3/4
Shank end coolant hole thread size inG 1/4
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
