Iscar

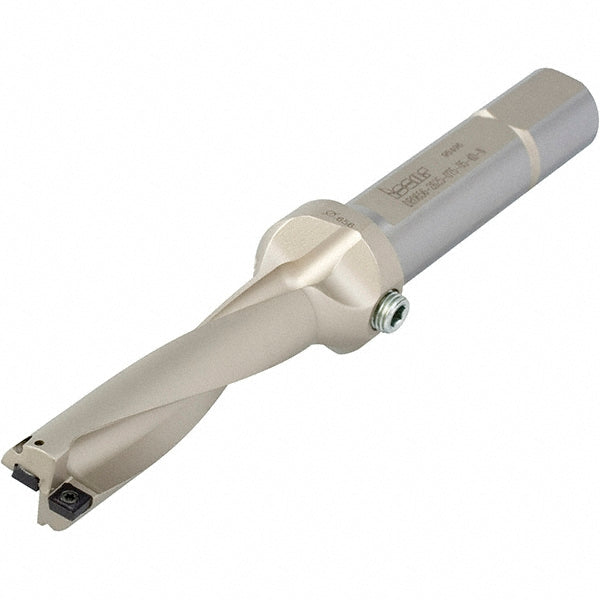

Indexable Drilling - Iscar 3202583
MFR# 3202583Series DR-TWIST
$715.17List $738.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202583 indexable drilling. Series DR-TWIST.
Specifications
Body length4.5900
Body side coolant hole thread size in1/16-27
Collar diameter1.2500
Compatible drill styleDR
Compatible insert size code060204-DT
Compatible insert styleSOMT
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio5xD
Drill diameter in3/4
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF
Maximum drill depth3.7600
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in3/4
Modular connection size1 in
Neck diameter in1.2500
Number of drill inserts2
Shank diameter in1
Shank end coolant hole thread size inG 3/8
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
