Iscar

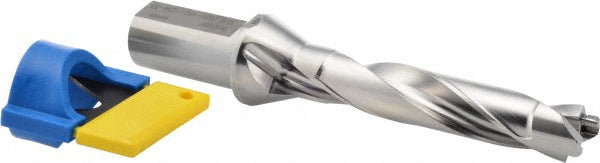

Indexable Drilling - Iscar 3202591
MFR# 3202591Series SumoCham
$767.08List $792.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202591 indexable drilling. Series SumoCham.
Specifications
Body length6.4800in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth4.9200
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter1.0200
Minimum drill diameter0.9840
Overall length8.8400in
Shank diameter in1-1/4in
Shank length2.3600in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
