Iscar

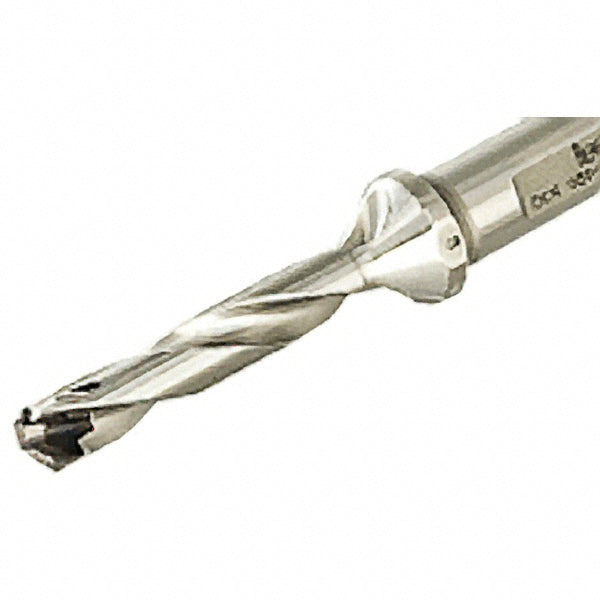

Indexable Drilling - Iscar 3202598
MFR# 3202598Series SumoCham
$748.09List $772.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202598 indexable drilling. Series SumoCham.
Specifications
Body length8.3000in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Maximum drill depth6.9300
Maximum drill depth range6.0000 to 8.0000
Maximum drill diameter0.9020
Minimum drill diameter0.8660
Overall length10.5000in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
