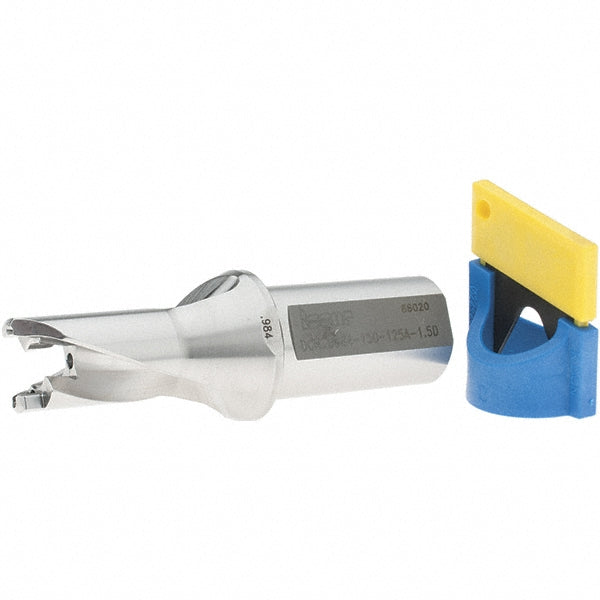

Indexable Drilling - Iscar 3202604
MFR# 3202604Series SumoCham
$581.67List $590.20
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202604 indexable drilling. Series SumoCham.
Specifications
Body length3.0300in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size25
Maximum drill depth1.5000
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter1.0200
Minimum drill diameter0.9840
Overall length5.3900in
Shank diameter in1-1/4in
Shank length2.3600in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
