Iscar

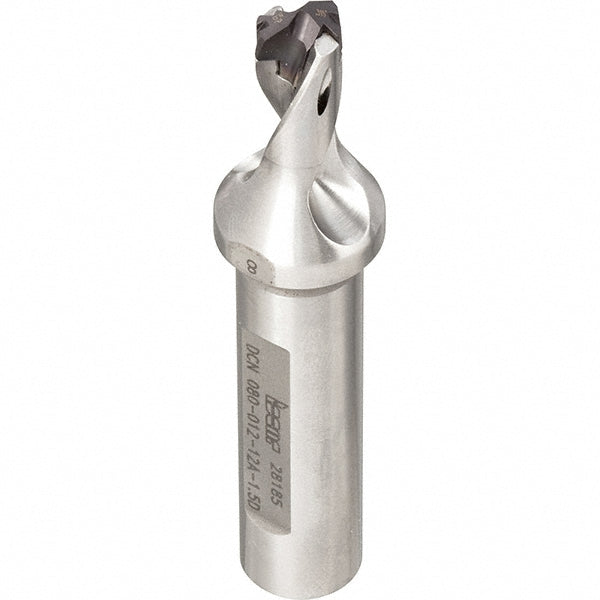

Indexable Drilling - Iscar 3202616
MFR# 3202616Series SumoCham
$216.23List $219.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202616 indexable drilling. Series SumoCham.
Specifications
Body length1.1
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size8
Maximum drill depth0.4700
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.3310
Minimum drill diameter0.3150
Overall length2.87
Shank diameter in1/2
Shank length1.7700
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
