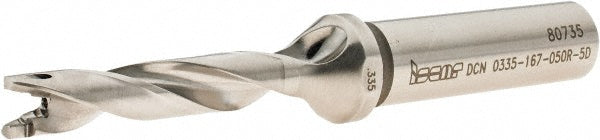

Indexable Drilling - Iscar 3202618
MFR# 3202618Series SumoCham
$271.03List $275.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202618 indexable drilling. Series SumoCham.
Specifications
Body length2.2800in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size8
Maximum drill depth1.6700
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.3500
Minimum drill diameter0.3350
Overall length4.0500in
Shank diameter in1/2in
Shank length1.7700in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
