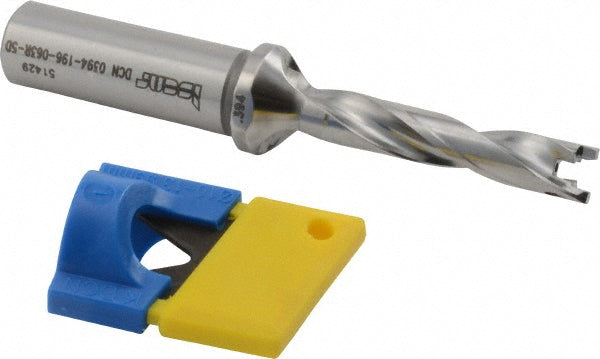

Indexable Drilling - Iscar 3202623
MFR# 3202623Series SumoCham
$302.24List $312.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202623 indexable drilling. Series SumoCham.
Specifications
Body length2.61
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICN; ICP; ICP-2M; QCP-2M
Coolant throughYes
Maximum drill depth1.9600
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.4090
Minimum drill diameter0.3940
Overall length in4-1/2
Shank diameter in5/8
Shank length1.8900
Shank typeFlatted
StandardsISO 13399
Toolholder styleDCN A-5D
Tool applicationHolemaking
